1. •Multiple functions in one 192 pin VPC slot


2. •4 modules per carrier each with 48 pins to VPC


3. •POE provides power to all modules


4. •25 watt per carrier, 6 watts per module


5. •Each module hosts it’s own WEB page for control and status.

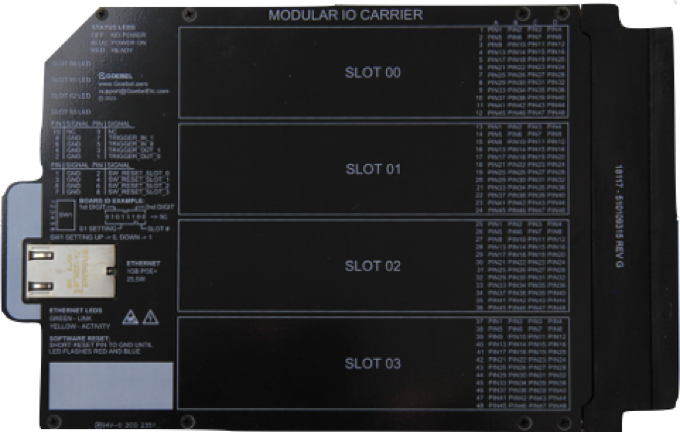

MIO-PSW Carrier for 4 MIO modules

The MIO-PSW carrier only needs one Ethernet RJ45 cable with POE capability.  The ethernet port supports 1 Gb speeds.  An ethernet switch on the carrier routes traffic to each of the 4 modules hosted by the carrier. The modules can be of dissimilar types.

MIO modular  IO
